Stainless steel compost toilet components kit for self-build

Stainless steel compost toilet components kit for self-build

Made in Europe.

Warning: There is no stand or board in this set. This product is designed for the user to build their pit toilet with planks, offcuts or old furniture that they supply themselves.

Three-piece set in stainless steel allowing you to make your own dry toilet.

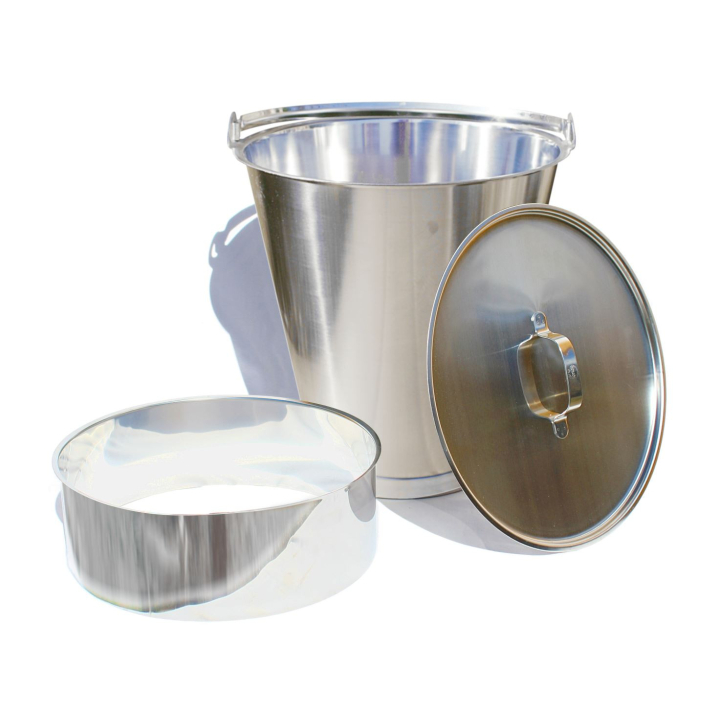

This kit includes :

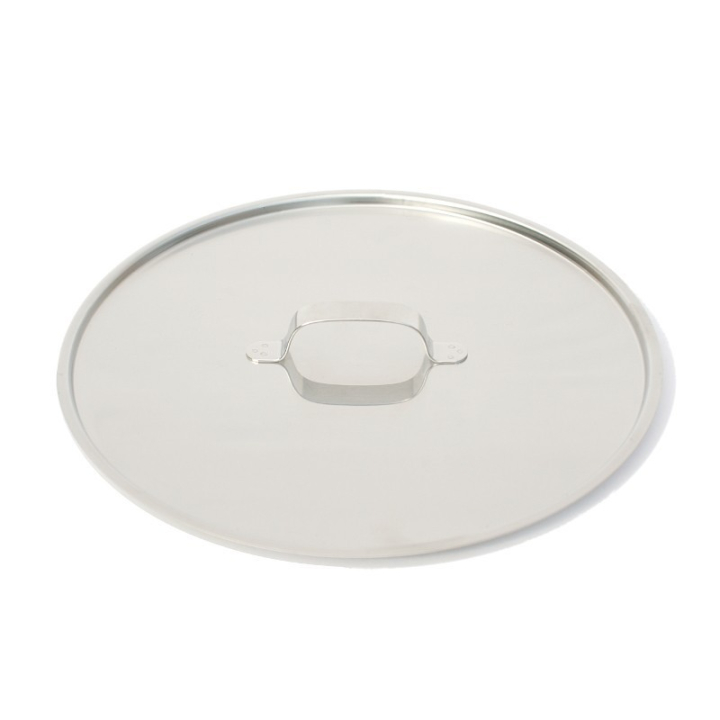

- A stainless steel cover for a 15 liter bucket.
Diameter: 32 cm.
Weight: 0.65 Kg

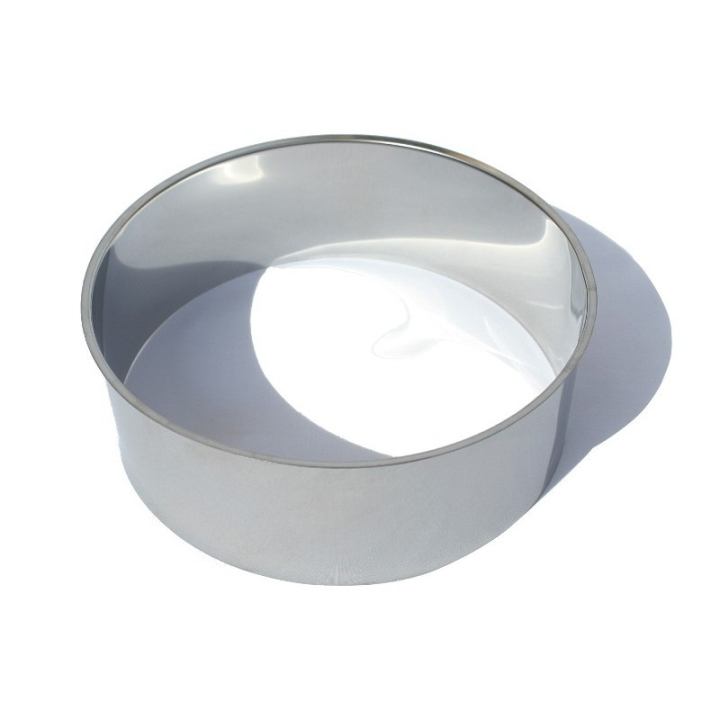

- A 27,5 cm diameter stainless steel collar
Dimensions: diam. 27.5 cm x H 10 cm.
Small external return of 5 mm on the entire upper turn to facilitate the locking of the bib.
Weight: 0.350 Kg

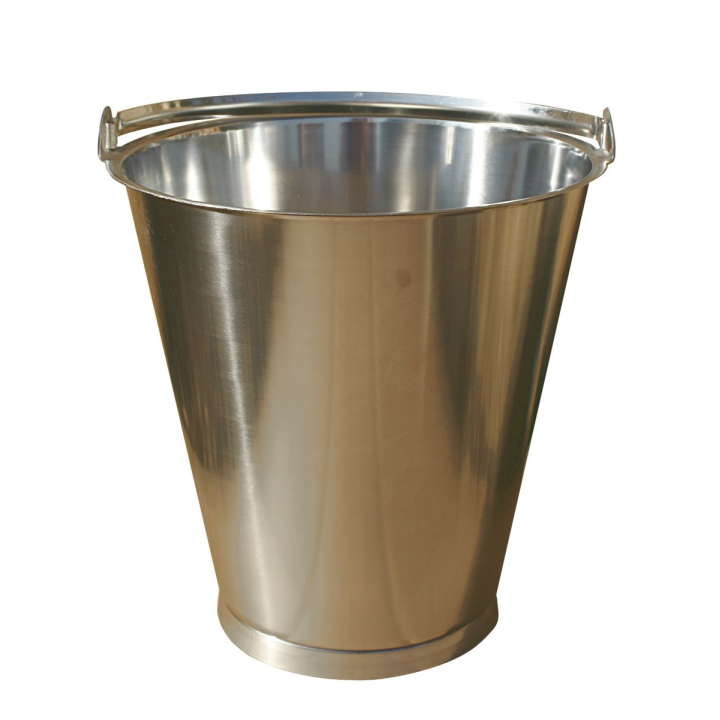

- A 15 liter stainless steel bucket
Dimensions:
Without base: diam. 34 cm x H 34.2 cm.
With base: diam. 34 cm x H 36.2 cm.
Weight: 1.55 Kg. (Without base) 1.65 Kg. (With base)

Weight of the set: 2.5 Kg. (Without base) 2.65 Kg. (With base)

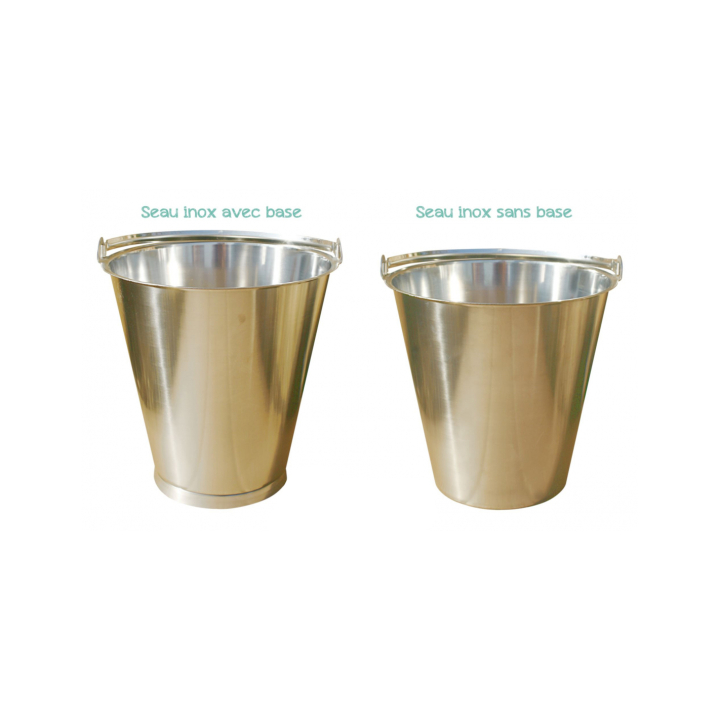

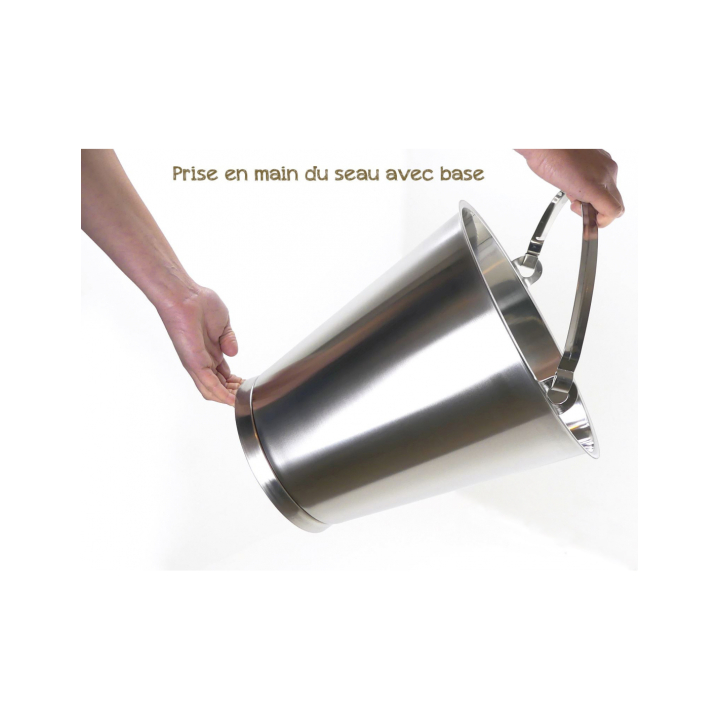

The base placed under the bucket allows a better hold, a better maintenance of this one during the emptying. It looks like an extra handle on the underside of the bucket.
It also ensures that the bottom of the bucket is not in direct contact with the ground, thus avoiding any stagnation of condensation and rust in the long term.
It also protects the bottom of the bucket from any deformation.

We strongly recommend the use of a stainless steel bib in dry toilets.

Indeed, this makes it possible to avoid any leakage between the seat and the bucket and also to use all the useful volume of the bucket while keeping a comfort distance of about ten centimeters between the seat and the contents. It optimizes the volume of your bucket.

Advice :

We recommend that you wait until you have received this package before starting to design your pit toilet.
It is advisable to trace the hole of the toilet from the bib (positioned on the board) so as not to end up with a hole that is too large. This can be played out over a few millimeters.
Find the assembly instructions on the "Attached documents" tab on this page.
